Robot PortaBase 175

Standardized Portable Base Robot Handling System

Faster, with a longer reach, and able to handle larger and heavier items. The Robot PortaBase 175 is the perfect choice if your workload exceeds the capabilities of Robot PortaTable 130 but falls short of requiring an industrial robot.

  • Ready-cut-parts are being picked automatically based on cut path contours
  • Dynamic parts handling with integrated software communicating to cutter’s Pick & Place module

  • No robot programming needed – just connect and start production

  • Ideal for medium-sized roll and sheet production jobs

Robot PortaBase 175

Standardized Portable Base Robot Handling System

Faster, with a longer reach, and able to handle larger and heavier items. The Robot PortaBase 175 is the perfect choice if your workload exceeds the capabilities of Robot PortaTable 130 but falls short of requiring an industrial robot.

  • Ready-cut-parts are being picked automatically based on cut path contours
  • Dynamic parts handling with integrated software communicating to cutter’s Pick & Place module

  • No robot programming needed – just connect and start production

  • Ideal for medium-sized roll and sheet production jobs

Extended arm reach and speed

The PortaBase 175 has a 175cm and 360° arm reach, making it suitable for larger and wider cutters.

The Robot PortaBase consists of an integrated UR30e robot connected to Zünd software.

Extended gripper with a payload of 20kg

Robust gripper with suction cups or pinchers for picking rigid or flexible objects from 50mm to 400x500mm* depending on application and substrate.

Robust robot base that can be moved with a pallet lift

Mounted on a portable base, the robot can be easily relocated using a standard pallet lifter. Its arm is adjustable, allowing for maximum reach when elevated.

The Robot PortaBase functions as a collaborative robot at slower speeds and transitions to a conventional robot at higher speeds.

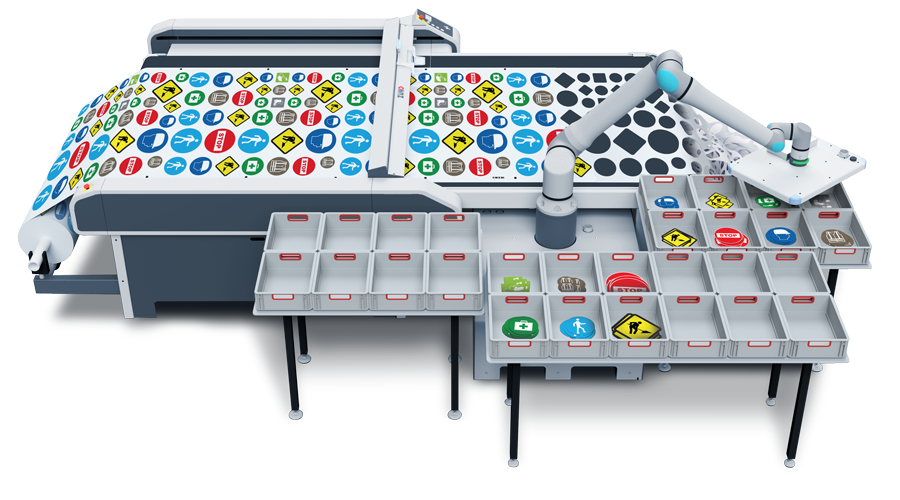

Picking, sorting, kitting and stacking

Pick, sort, kit or stack into boxes, crates, roller tables or pallets.

Perfectly designed for use with standard bins in different sizes. Easy setup with predefined stack layouts.



Loading and unloading

With the poster gripper, rows of poster can easily be picked form the cutter, and stacked directly on the table.

For privacy reasons YouTube needs your permission to be loaded. For more details, please see our Privacy Policy.
I Accept
 Tandem production with Robot PortaBase 175

Robot PortaBase 175 effortlessly retrieves sheets from the Zünd cutter during tandem production, seamlessly handling 8000 items across 200 sheets without requiring any manual intervention.

This process, accomplished with zero man hours, includes loading from a single stack, precise sheet alignment, and unloading into two separate stacks.

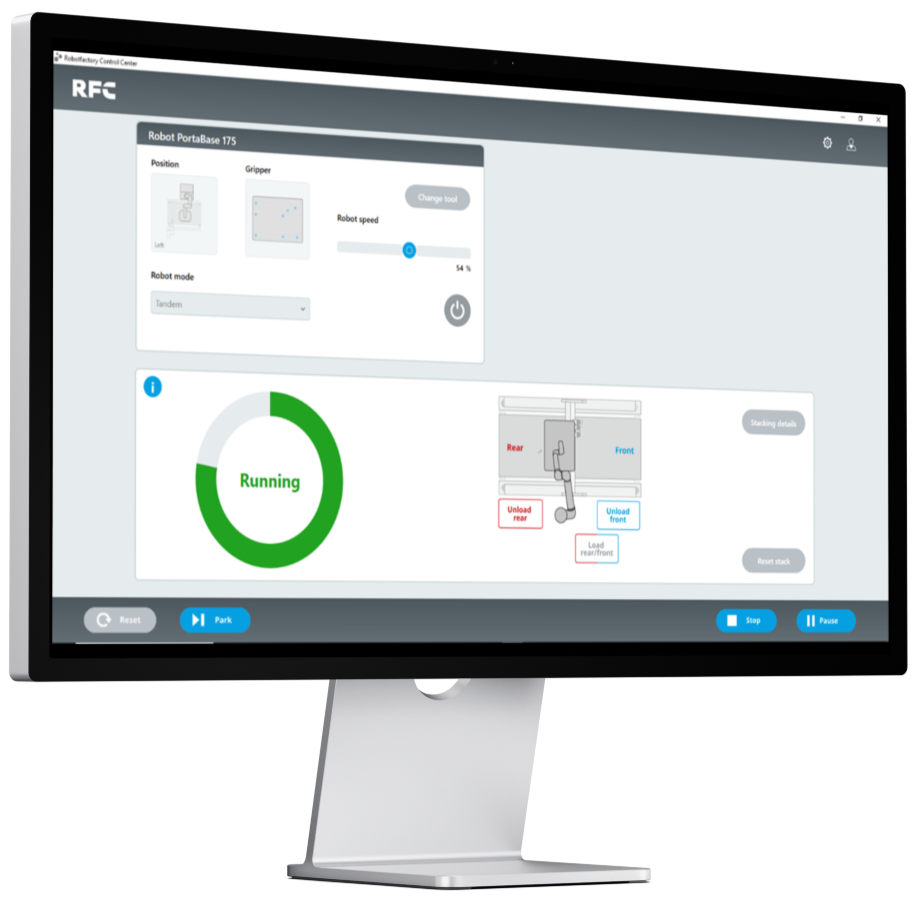

Intuitive Software

Out-of-the-box pre-programmed software.

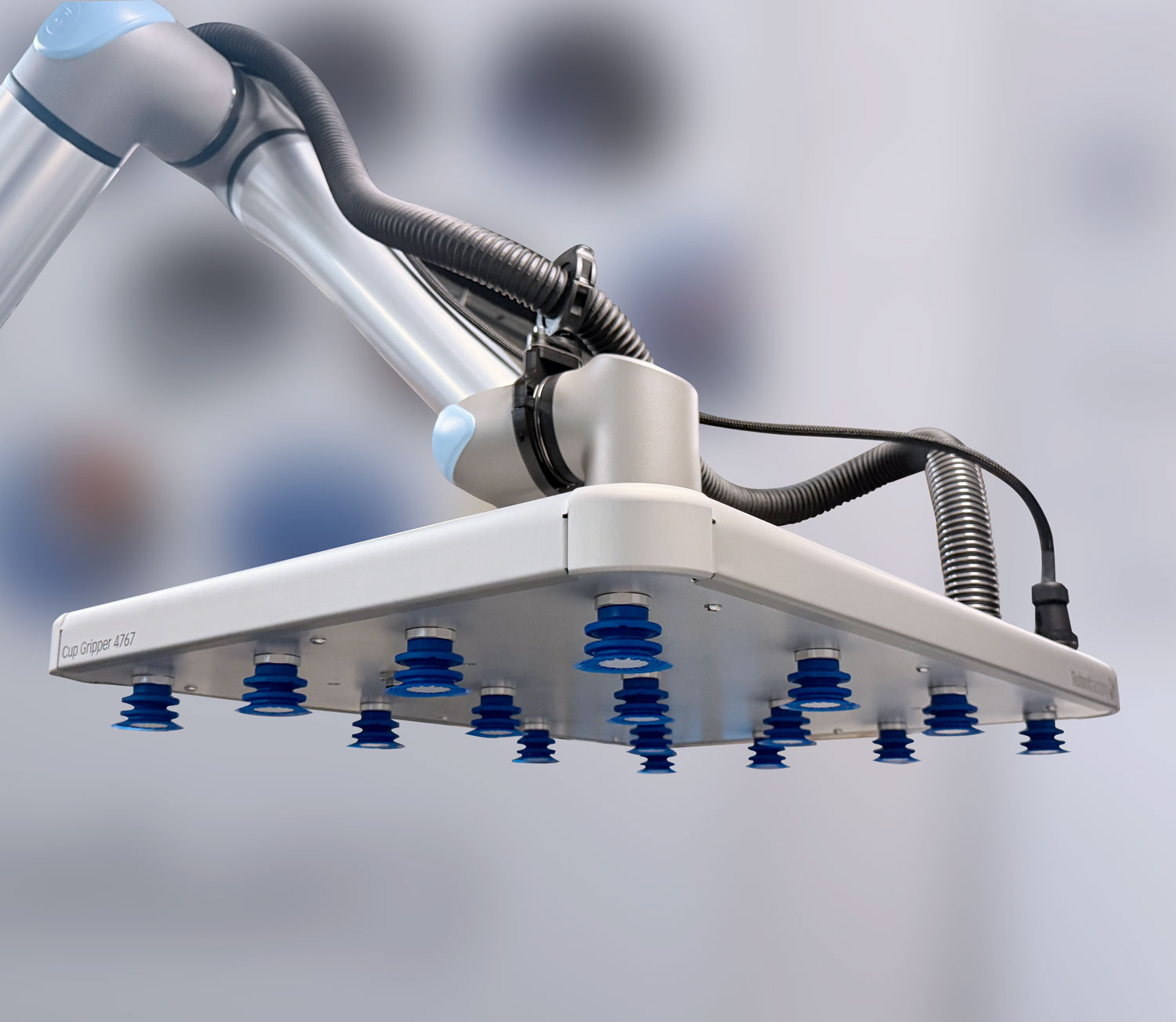

Powerful grippers

Multiple grippers are available for different applications. Each gripper comes with a quick-connector for easy changeover.

Cup Gripper 3036 (standard)

The Cup Gripper 3036 has 16 suction cups in a matrix of 4 x 4. This standard gripper is suitable for both loading and unloading. Suction cups are individually activated for optimal picking.

Gripper Area:

300 x 360 mm

Number of cups:

16 pcs

Typical Materials:
Foils, paper, non-porous materials
Unloading parts size:
From 50 x 50 mm up to 400 x 500 mm

Cup Gripper 6140

The Cup Gripper 6140 is a suction gripper with 10 suction cups placed on a straight line. The gripper is ideal for unloading poster prints on rolls up to 1600 mm width. The full roll width is unloaded in one movement whether being one large poster or several smaller ones.

Gripper Area:

50 x 140 mm

Number of cups:

10 pcs

Typical Materials:
Foils, paper, non-porous flexible materials
Unloading parts size:
From 150 x 150 mm up to 1400 x 1600mm

New! Pinch Gripper 3036

The pinch gripper 3036 is ideal for picking fabrics and textiles from rolls. The pieces can then be sorted or kitted into boxes. Each pinch-gripper is activated individually for optimal picking.

Gripper Area:

60 x 140 mm

Number of grippers:

4 pcs

Typical Materials:
Fabrics, textiles, thin and soft materials
Applications:
Apparel, upholstery, technical textiles
Unloading parts size:
From 80 x 80 mm up to 1400 x 1600mm

Easily change between grippers
