Robot Porta Table 130

Standardized Portable Robot Handling System

The flexible fully integrated collaborative Robot PortaTable acts as an “assistant operator” to keep up with your digital production. Designed to serve multiple cutters where needed, it helps automate to reduce operator intervention and cost.

Robot PortaTable 130

Standardized Portable Robot Handling System

The flexible fully integrated collaborative Robot PortaTable acts as an “assistant operator” to keep up with your digital production. Designed to serve multiple cutters where needed, it helps automate to reduce operator intervention and cost.

  • Ready-cut-parts are being picked automatically based on cut path contours
  • Dynamic parts handling with integrated software communicating to cutter’s Pick & Place module

  • No robot programming needed – just connect and start production

  • Ideal for medium-sized roll and sheet production jobs

Picking, sorting, kitting and stacking

Perfectly designed for use with standard bins in different sizes. Easy setup with predefined stack layouts.

Standardized Portable Robot Handling System

The flexible fully integrated collaborative Robot PortaTable acts as an “assistant operator” to keep up with your digital production.

Designed to serve multiple cutters where needed, it helps automate to reduce operator intervention and cost.

Collaborative robot from Universal Robots

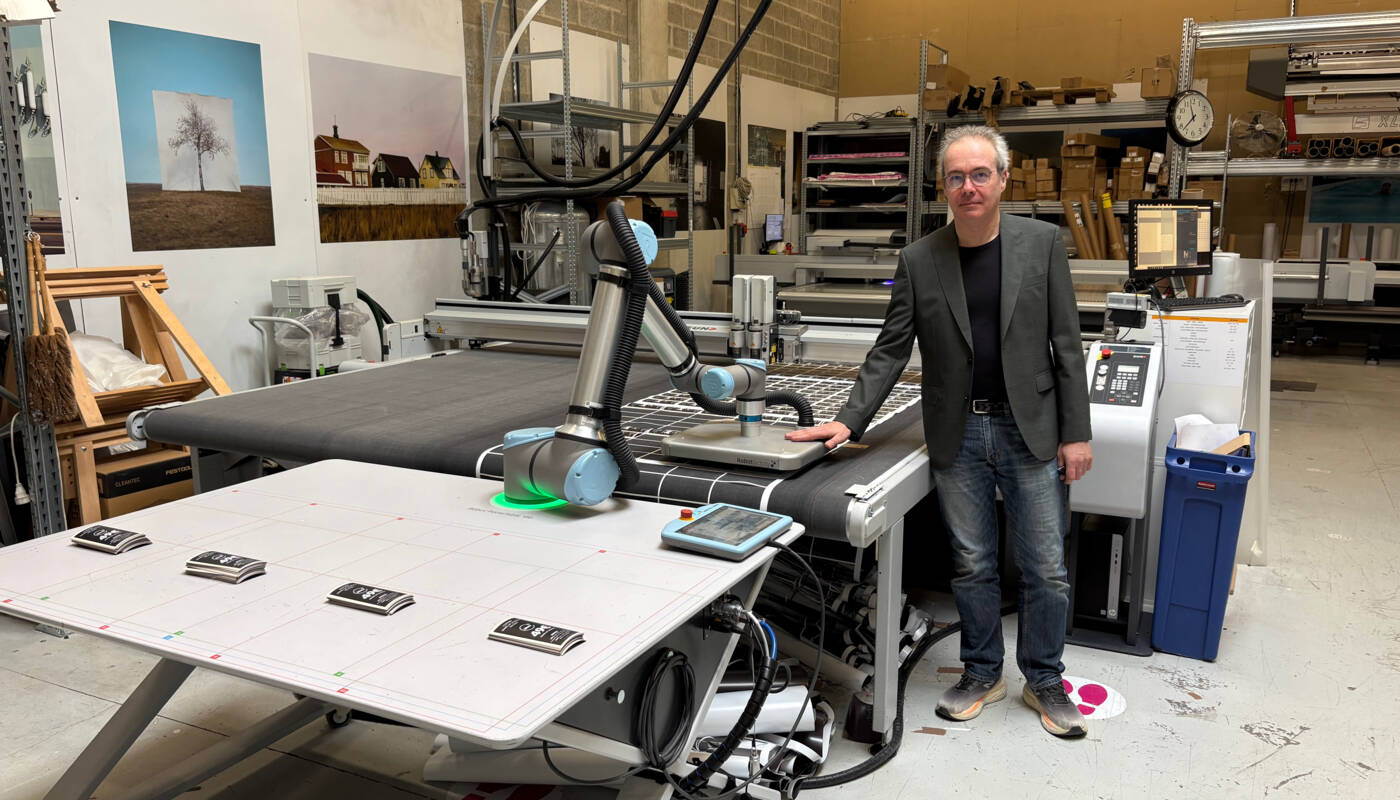

The Robot PortaTable consists of an integrated UR10e robot connected to Zünd software.
The robot is designed for use side-by-side with an operator.

Suction Cup Gripper

Robust gripper with 16 suction cups for picking objects from 50x50mm to 400x500mm* depending on application and substrate.

Laser pointer alignment

Laser pointer alignment for quick and easy re-connection to multiple cutters

Move between multiple cutters

The Robot PortaTable is designed to serve multiple cutters. Simply roll the table next to the cutter and align using the built-in laser points. No programming and re-calibration is necessary.

Place laser point stickers on the floor, and use them for the exact positioning of the table.

Simple and easy!

Pick and sort in boxes

Take advantage of the built-in sorting feature with predefined layouts.
Choose to stack directly onto the table or drop into bins. The table markings show where to place bins.

Red marking: 10 stacks on table / small boxes.
Green marking: 4 stacks on table / big boxes.
Blue marking: 2 stacks on table

Poster picking

With the poster gripper, rows of poster can easily be picked form the cutter, and stacked directly on the table.

Load and unload with the loading tray

Utilize the table as an all-in-one solution for both loading and unloading through its integrated loading tray feature. The tilted loading tray guarantees precise alignment of the stack of sheets.

Load directly from pallet

Use PortaTable to load material directly from pallet to table. Depending on material thickness, the tilt of the gripper can be adjusted.

Pick to pallet or roller-table

Robot PortaTable can be set up to stack posters onto a roller table or directly onto a pallet.

Powerful grippers

Multiple grippers are available for different applications. Each gripper comes with a quick-connector for easy changeover.

Cup Gripper 3036 (standard)

The Cup Gripper 3036 has 16 suction cups in a matrix of 4 x 4. This standard gripper is suitable for both loading and unloading. Suction cups are individually activated for optimal picking.

Gripper Area:

300 x 360 mm

Number of cups:

16 pcs

Typical Materials:
Foils, paper, non-porous materials
Unloading parts size:
From 50 x 50 mm up to 400 x 500 mm

Cup Gripper 6140

The Cup Gripper 6140 is a suction gripper with 10 suction cups placed on a straight line. The gripper is ideal for unloading poster prints on rolls up to 1600 mm width. The full roll width is unloaded in one movement whether being one large poster or several smaller ones.

Gripper Area:

50 x 140 mm

Number of cups:

10 pcs

Typical Materials:
Foils, paper, non-porous flexible materials
Unloading parts size:
From 150 x 150 mm up to 1400 x 1600mm

New! Pinch Gripper 3036

The pinch gripper 3036 is ideal for picking fabrics and textiles from rolls. The pieces can then be sorted or kitted into boxes. Each pinch-gripper is activated individually for optimal picking.

Gripper Area:

60 x 140 mm

Number of grippers:

4 pcs

Typical Materials:
Fabrics, textiles, thin and soft materials
Applications:
Apparel, upholstery, technical textiles
Unloading parts size:
From 80 x 80 mm up to 1400 x 1600mm

Easily change between grippers

Intuitive Software

Out-of-the-box pre-programmed software.

  • Robot PortaTable 130 picking and sorting textiles

    Picking, sorting and kitting textiles with Robot Porta Table 130 A new textile-gripper for Robot PortaTable 130 automated picking and sorting in our digital short-run production of company T-shirts. With our efforts to continuously grow and expand on robot applications, we turned [...]

  • Industriprint goes to next level automation with Robot PortaTable 130

    Celebrating 50 years in the top-tier screen printing industry Industriprint is a highly experienced provider of screen printing solutions for industries. They have extensive knowledge and expertise in every aspect of this field, including selecting the right materials, choosing optimal adhesives, using the best colors, and employing [...]

Five up automated streamer production with Robot PortaTable 130
  • Cup Gripper 6140 picking five streamers at a time
  • 200 meters of roll – 0 man hours
  • Automatic production with no operator interference

For privacy reasons YouTube needs your permission to be loaded. For more details, please see our Privacy Policy.
I Accept

Robot PortaTable 130 with pinch gripper for textile picking and sorting

  • Dynamic picking. No robot setup required

  • Automatic sorting and kitting

  • Multiple dropping and stacking layouts

For privacy reasons YouTube needs your permission to be loaded. For more details, please see our Privacy Policy.
I Accept
Picking and sorting with Robot PortaTable 130
  • Dynamic picking. No robot setup required

  • Multiple dropping and stacking layouts

  • Automatic sorting and kitting

  • Numerous applications and substrates

For privacy reasons YouTube needs your permission to be loaded. For more details, please see our Privacy Policy.
I Accept

Robot Porta Table 130 with cup gripper 6140

  • Auto picking multiple parts (1 – 10 pcs)

  • Support sheet sizes from 150x150mm up to 1200x1600mm

  • Numerous applications and substrates

For privacy reasons YouTube needs your permission to be loaded. For more details, please see our Privacy Policy.
I Accept

Robot Porta Table 130 loading
from pallet and Load Tray

  • Loads sheets from pallet or Load Tray

  • For sheets up to 500 x 700 mm with Load Tray

  • Larger sheets can be loaded from pallet

For privacy reasons YouTube needs your permission to be loaded. For more details, please see our Privacy Policy.
I Accept

Would you like a demo?

Just reach out…

Contact us for more information, for a demonstration (live or webinar), and for anything else you might like to know about robot automation.
